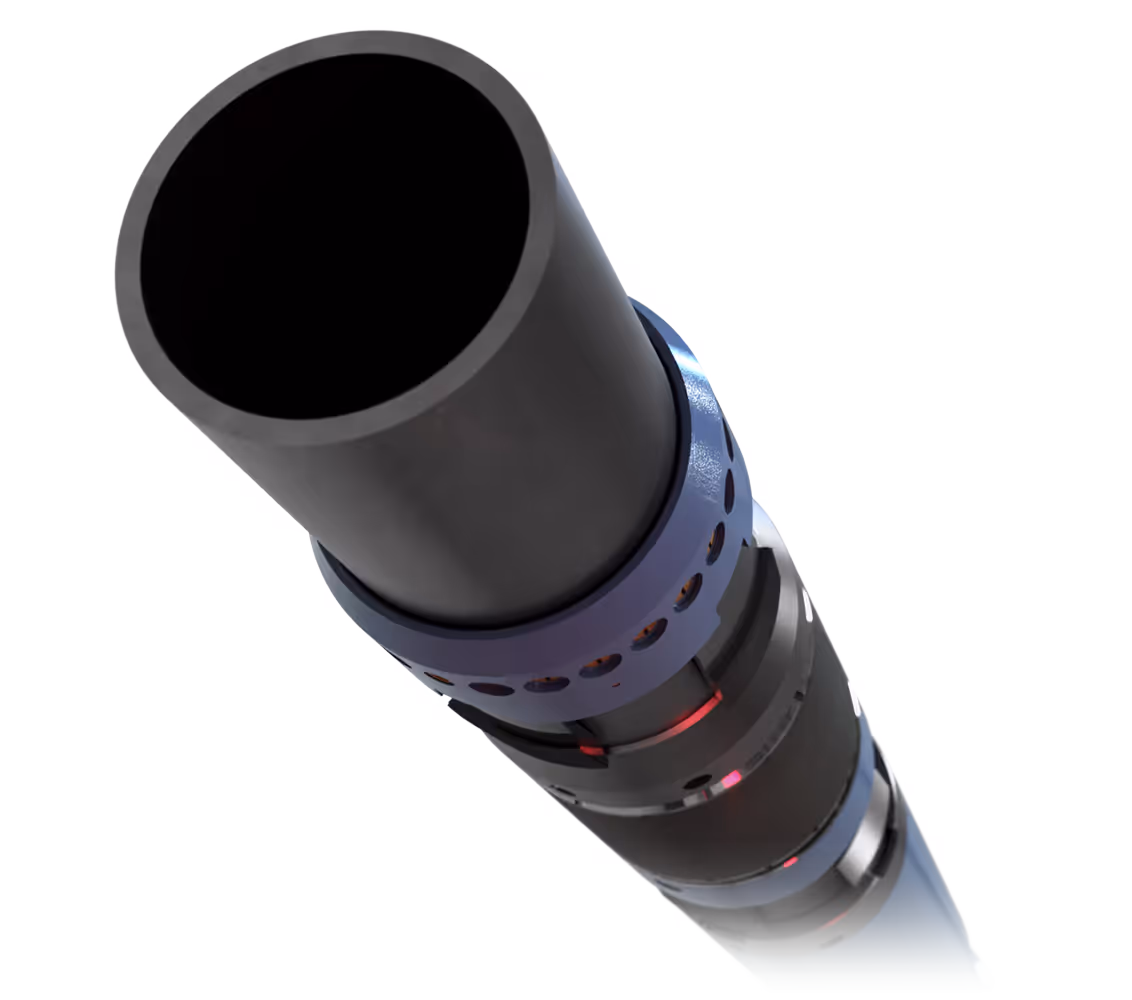

MH Liner Hanger Packer

The MH Thermal Liner Hanger Packer is a hydraulically set liner hanger packer for use in thermal applications. With a temperature rating of 343° C, the metal to metal system in conjunction with the thermal element is capable of an initial pressure test to 21 MPa. This packer has both hanger slips as well as top hold down slips. The design for this product includes no elastomers. It is engineered for harsh environments which exceed the temperature and pressure limits for elastomers, such as O-rings, packing and rubber compounds.

Tailpipe Hanger

Hydraulically Set Liner Hanger Packer

Designed to be run and set utilizing a hydraulic setting tool which is engineered for producing high setting forces and handling high axial loads.
Rated up to 15,000 psi [103 MPa]
Rated up to 649 degF [343 degC]
Top and bottom anchoring slips

Product Info

Product Info

Applications

The MH Thermal Liner Hanger Packer is designed for thermal applications. It is primarily used when it is necessary to have top and bottom anchoring slips, yet still be fully retrievable. This packer is utilized as a liner hanger, tailpipe hanger, bridge plug (with bullnose), and can be combined with the MH Patch Bottom to form a casing patch for remedial wellbore repair.

Features & Benefits

FEATURES

  • Large beveled re-entry sleeve
  • Large through bore
  • Metal to metal seal with static element
  • NACE MRO175 compliant for environments containing H2S

BENEFITS

  • Thermal element rated to 343°C
  • No work string manipulation required to set packer
  • Standard tools/spears used for retrieval
  • Liner or tailpipe placement control (anchored during thermal cycling)
  • Adjustable surface setting pressures
  • Tested and verified for well tractor transition from intermediate casing, through packer, and into liner without a slave string
