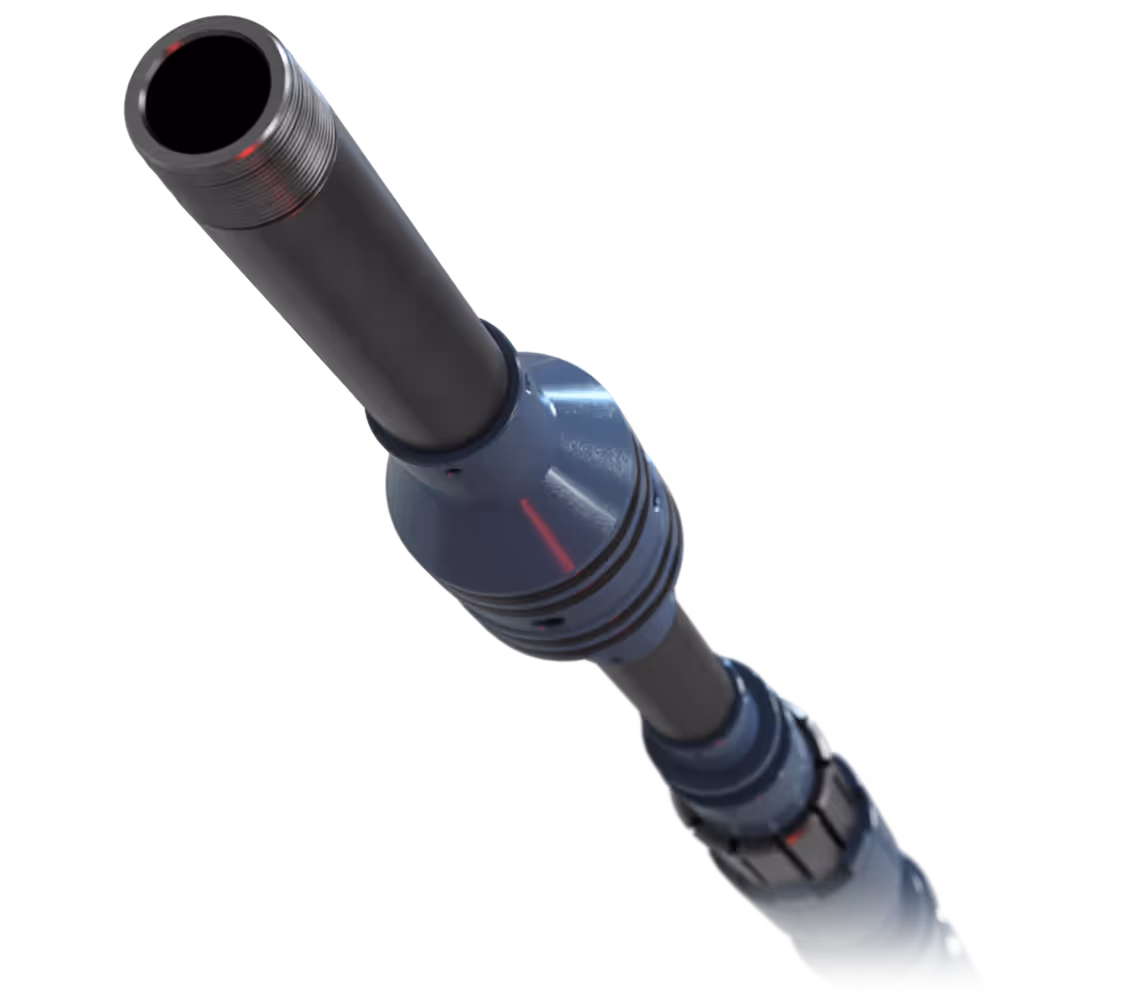

Long Reach Setting Tool

The setting tool includes a collet-type hydraulic release liner deployment and release mechanism, as well as a pusher sleeve to pack off the LRP. No rotation is required to release the LRST from the liner, making it suitable for horizontal and high-inclination wells. The LRST allows the Long Reach Liner system to be pushed, pulled, and rotated to achieve target depth. An internal bypass feature reduces formation surge pressures and allows faster running speeds. The LRST also features a backup mechanical-release mechanism (option) that reduces the risk of not being able to release the LRST from the liner. The mechanical release is achieved by a one-quarter turn to the left.
Setting Tool

Used for LRP

The LRST is used exclusively to run liner systems that use the Long Reach Liner Packer (LRP).
Clutch Design
Minimizes completion time

Product Info

Product Info

Applications

  • Horizontal wells
  • Well applications requiring rotation when running in hole
  • Operations requiring pushing and pulling the liner to reach target depth
  • Well applications requiring a hydraulic setting and release mechanism

Features & Benefits

  • Minimize completion time by rotating the liner when running in hole
  • Reduces risk of pulling liner out of well and saves associated time and costs with secondary-release option
  • Clutch design to transmit torque to the liner
  • Hydraulic pusher sleeve to hang and pack off tool
  • Setting tool that accepts inner circulation string
  • Backup mechanical release to ensure liner release (1/4 left-hand turn)
